Determination of deviations of monolithic buildings

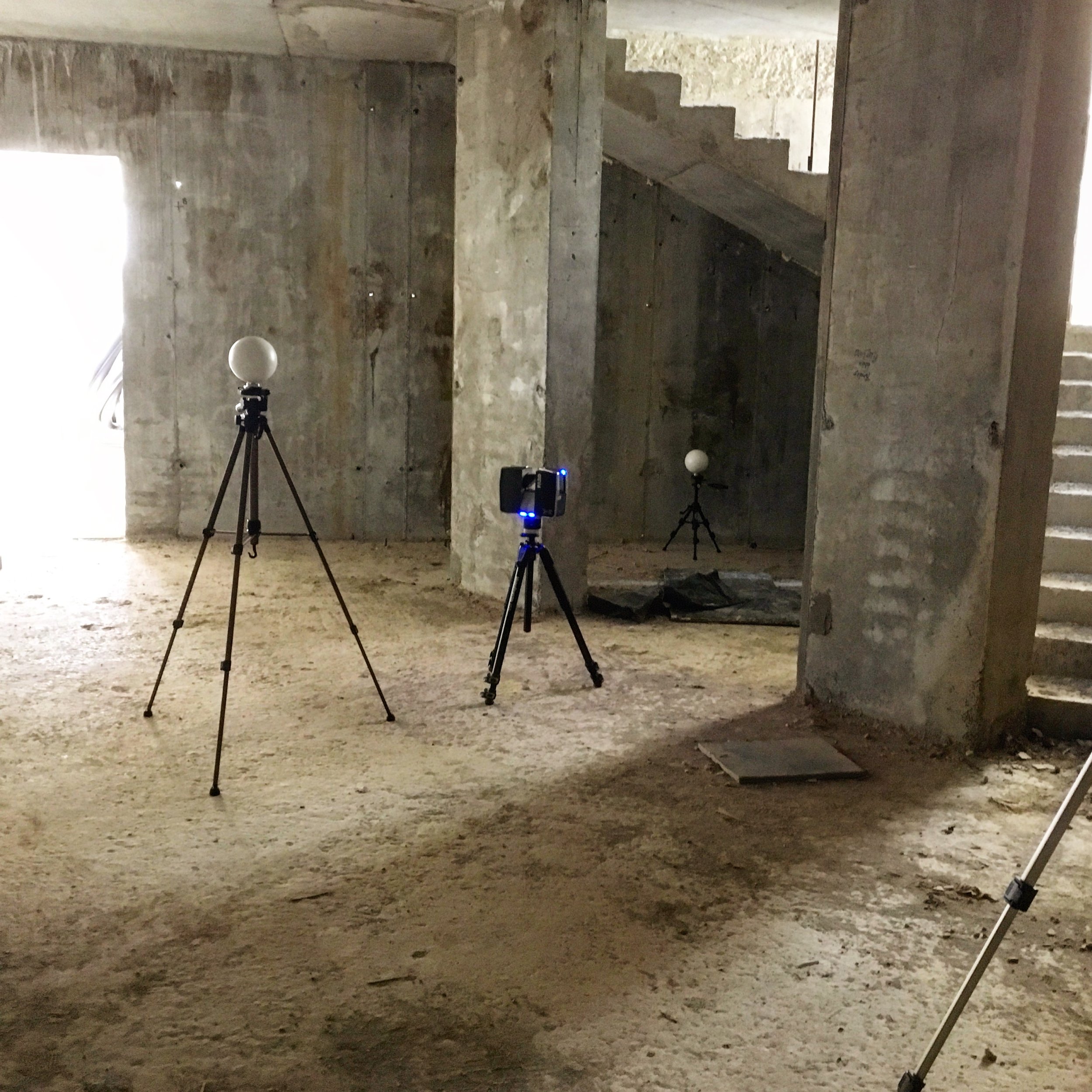

Laser scanning of a six-story monolithic building during the construction phase aimed to determine deviations in load-bearing structures from the vertical axis and to compare the actual position of these structures with the design. Laser scanning was carried out using the ground-based Faro Focus X130 laser scanner and took 2 working days to complete. The laser scanning positions were registered into a unified coordinate system, resulting in a dense point cloud for further processing in AutoCAD. The post-processing of laser scanning results into floor-specific deviation drawings took 8 working days.
